Outdoor LED Underground Lights
LNJAMI was established in 2008, focusing on producing outdoor LED lights. One of the primary products in LNJAMI is LED underground lights with IP67/IP78 rating, which satisfy all outdoor lighting requirements. For more information about LED underground lights, please reach out.

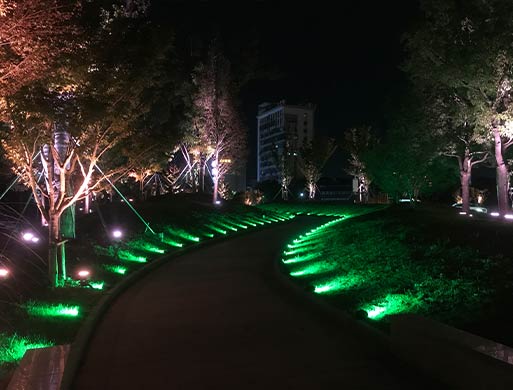

LNJAMI LED Underground Light Practical Cases
Best Selling LED Underground Lights
LED underground lights are a particular kind of scenario light with an underground light source. Construction personnel can decide on the appropriate LED Inground Lights and two distinguishing ways of installation, including embedded and standing, based on various circumstances.
The LED inground light has a long, useful life lasting ten years. The light bulb needs no replacement unless an accidental impairment occurs.
Work normally in --25°C~50°C in Celsius.
The light source is made of less costly and efficient LEDs, with high lightness, low electricity cost, and a colossal lighting area.
Dazzling proofness: the waterproof encapsulation glue fits and ties the glass tightly, avoiding the occurrence of water droplets.
Double waterproof design: vacuum crafts protect the light source and electrical appliances from water, with a protection level of IP68.
Technical Specifications
| MODEL | POWER | DIMENSION | VOLTAGE | CCT | BEAM ANGLE | IP RATE |
| MD25W48D2 | 12W/15W | L1000*W25*H50mm | DC24V | 2700K-6000K/RGBW | 15°/20°/30°/45°/20*40°/110° | IP65~68 |
| MD25MW60D2 | 15W/18W | L1000*W25*H50mm | DC24V | 2700K-6000K/RGBW | 15°/20°/30°/45°/20*40°/110° | IP65~68 |
| MD60W24D2 | 24W/48W | L1000*W60*H77mm | DC24V | 2700K-6000K | 10°/15°/30°/45°/60°/15*25°/10*60°/110° | IP65~68 |
| MD60MW60D2 | 15W/18W | L1000*W60*H77mm | DC24V | 2700K-6000K/RGBW | 10°/15°/30°/45°/60°/15*25°/10*60°/110° | IP65~68 |
| MD72W24D2 | 24W/36W | L1000*W68*H80mm | DC24V | 2700K-6000K | 10°/15°/30°/45°/60°/15*25°/10*60°/110° | IP65~68 |
| MD72MW60D2 | 15W/18W | L1000*W68*H80mm | DC24V | 2700K-6000K/RGBW | 10°/15°/30°/45°/60°/15*25°/10*60°/110° | IP65~68 |
| MD50F1D2 | 3W | Ø52*H52mm | DC24V | RGB/RGBW | 120° | IP65~68 |
| MD85W3D2 | 3W | Ø85*H95mm | DC24V | 2700K-6000K/RGB/RGBW | 15°/30°/60° | IP65~68 |
| MD85W3D2B | 6W | Ø85*H95mm | DC24V | 2700K-6000K/RGB/RGBW | 15°/30°/60° | IP65~68 |
| MD130W6D2 | 6W | Ø130*H95mm | DC24V | 2700K-6000K/RGB/RGBW | 15°/30°/60° | IP65~68 |
| MD130W6D2B | 12W | Ø130*H95mm | DC24V | 2700K-6000K/RGB/RGBW | 15°/30°/60° | IP65~68 |
| MD160W9D2 | 9W | Ø160*H105mm | DC24V | 2700K-6000K/RGB/RGBW | 15°/30°/60° | IP65~68 |
| MD160W9D2B | 18W | Ø160*H105mm | DC24V | 2700K-6000K/RGB/RGBW | 15°/30°/60° | IP65~68 |
| MD180W12D2 | 24W | Ø180*H125mm | DC24V | 2700K-6000K/RGB/RGBW | 15°/30°/60° | IP65~68 |
| MD210W18D2 | 18W | Ø210*H120mm | DC24V | 2700K-6000K/RGB/RGBW | 15°/30°/60° | IP65~68 |
| MD210W18D2B | 27W | Ø210*H120mm | DC24V | 2700K-6000K/RGB/RGBW | 15°/30°/60° | IP65~68 |
| MD230W24D2 | 24W | Ø230*H135mm | DC24V | 2700K-6000K/RGB/RGBW | 15°/30°/60° | IP65~68 |
| MD230W18D2B | 30W | Ø230*H135mm | DC24V | 2700K-6000K/RGB/RGBW | 15°/30°/60° | IP65~68 |
Special Features
Dual Waterproof Design
Dual waterproof structures provide excellent waterproof ability, with a protection level of IP68.
Strong Anti-Glare Performance
Anti-dazzling system is made of 0.2mm precise grid with the patent of 85°precise cutting light.
Anti-static Optical Lens
Anti-static electricity and optical level PMMA lens with average high brightness lights.
Efficient Heat Dissipation Design
Aluminum alloy-made lamp body with a low thermal resistance path heat dissipation design.
Resistant to Vehicle Rolling
Thickening tempered glass plus stainless-steel ring-shaped surface design; pressure resistance built with high stiffness material.
Waterproof & Easy Installation
Extremely waterproof popper, which is durable, reliable, and easy to install.
Standard DMX512 Agreement
Standard DMX512 Agreement with a high greyscale of 65536 is met, controlling the change of luminance and color.
High-Class Customized Service
Provide the project design, illumination calculations, and customized product developments.
Installation Type
LED Underground Lights Applications
Our underground lights are developed by vacuum crafts and the united light source and shell, which can create soft and uniform light effects but also satisfy the requirement of safety and waterproofing. The application of the underground lights varies according to the color, power, angle of lights, size, and styles. You are welcome to share your insights with us to obtain suitable recommendations.
Building facades
Trees and plants
Bridges
Garden roads and walkways
Urban squares and public spaces
Villas and residential courtyards
Commercial districts and pedestrian streets
Cultural and tourist attractions and theme parks
We can design light-up projects as below:
Why Choose LNJAMI Underground Lights?
LNJAMI seeks to provide high-quality outdoor LED inground lights for buildings. The more than ten years’ focus on quality resulted in the leadership of LED underground light manufacturers.
Talent Advantages: We have a professional R&D team. All experts participate in the process from product design and development to production, installation, testing, and after-sales.
Supply Chain Advantages:We own a robust supply chain. The suppliers who have been collaborating furnish us with high-quality raw materials. Only the best materials would be used by us to create the best products.
Reliable Quality:Our quality assurance team assures the quality of our products by controlling the raw materials.
Certification System:Our products are certified by ISO9001 and other certification systems, proving the quality meets the standards.
Service Excellence in Underground Lighting Solutions
Customization service
We support customer-specific customization, including IP rate, specifications, packaging, etc.
Project rendering design
Own professional outdoor lighting design team to provides project effect design services
After-sales service
Professional engineering team provides installation and commissioning guidance services
Logistics Support
Different routes such as sea, air, land and express are available for customers to choose according to their needs
Frequently Asked Questions
Underground lights, called ingournd lights or buried lights, performs is to assist to navigate the path for car parking if at a small place or can be utilized to highlight a garden or just simply putting them in bushes for added beauty.
Underground Lighting is dedicated to you. We believe in offering the exact car lighting products you require. Please send us a request or chat with us online to discuss your custom automotive lighting needs.
