Outdoor Lighting Fixtures: 10 Ideas to Transform Your Facade
At night, light is one of architecture's most powerful storytellers. Proper outdoor lighting not only reveals the texture of stone and the layers of a façade but can also shape an iconic presence at an urban scale. A carefully designed lighting scheme influences how people approach, linger, and even spend time and money—it is both an aesthetic expression and an amplifier of commercial and public value.
For owners and facility managers, high-quality façade lighting also means energy efficiency and controllable operating costs: with the right outdoor lighting fixtures and control strategy, you can optimize for energy savings, durability, and visual performance. For design teams, light is an extension of architectural language—the correct choice of fixtures, optics, and control zones determines whether a design will truly "speak" after dark.
The ten ideas that follow pair design strategy with technical detail to help you convert concept into executable specifications and tender documents. Each recommendation includes practical implementation tips and common pitfalls so you can communicate more convincingly with suppliers and contractors and present a defensible case to clients.
1. Layer Light for Depth, Not Just Brightness
The most common mistake in façade lighting is equating more lumens with better design. The result is often a flat, over-illuminated wall that loses all sense of texture and volume. The professional solution is to think like a cinematographer: use light to create drama, highlight focal points, and guide the viewer's eye through a visual narrative.
1.1 Establish a Base Wash Layer
The wash layer is the canvas of the lighting scheme, providing uniform and comfortable foundational illumination that defines the building's primary mass. Use wide-beam wall washers or asymmetric linear lights to project light onto the wall from the ground or adjacent structures. The technical key lies in calculating the fixture spacing and beam angle to avoid hot spots and dark areas—a process greatly optimized by using manufacturers' IES files. A common mistake is over-lighting this layer; a softer base allows subsequent accent lighting to be more expressive.
1.2 Introduce an Accent Emphasis Layer
The accent lighting layer breathes life into the façade, creating depth by highlighting architectural features. Narrow-beam spotlights can precisely illuminate columns, window frames, or sculptures, while grazing light, achieved by installing fixtures close to the wall at a shallow angle, enhances the textural shadows of stone or exposed concrete. The artistry lies in balance—the accent layer should be significantly brighter than the wash layer to create contrast but not so突兀 as to lose harmony.
1.3 Add an Effect Enhancement Layer
The effect lighting layer is reserved for drama and iconic identity. Strategically placed uplights can illuminate the underside of overhangs, canopies, or sculptural elements, creating a floating effect. For this high-impact layer, consider using RGBW fixtures on key elements, allowing the building to switch between elegant white light for daily use and dynamic colors for festive occasions. Precise light control is crucial for this layer, ensuring light falls only on the intended target and avoids light pollution.

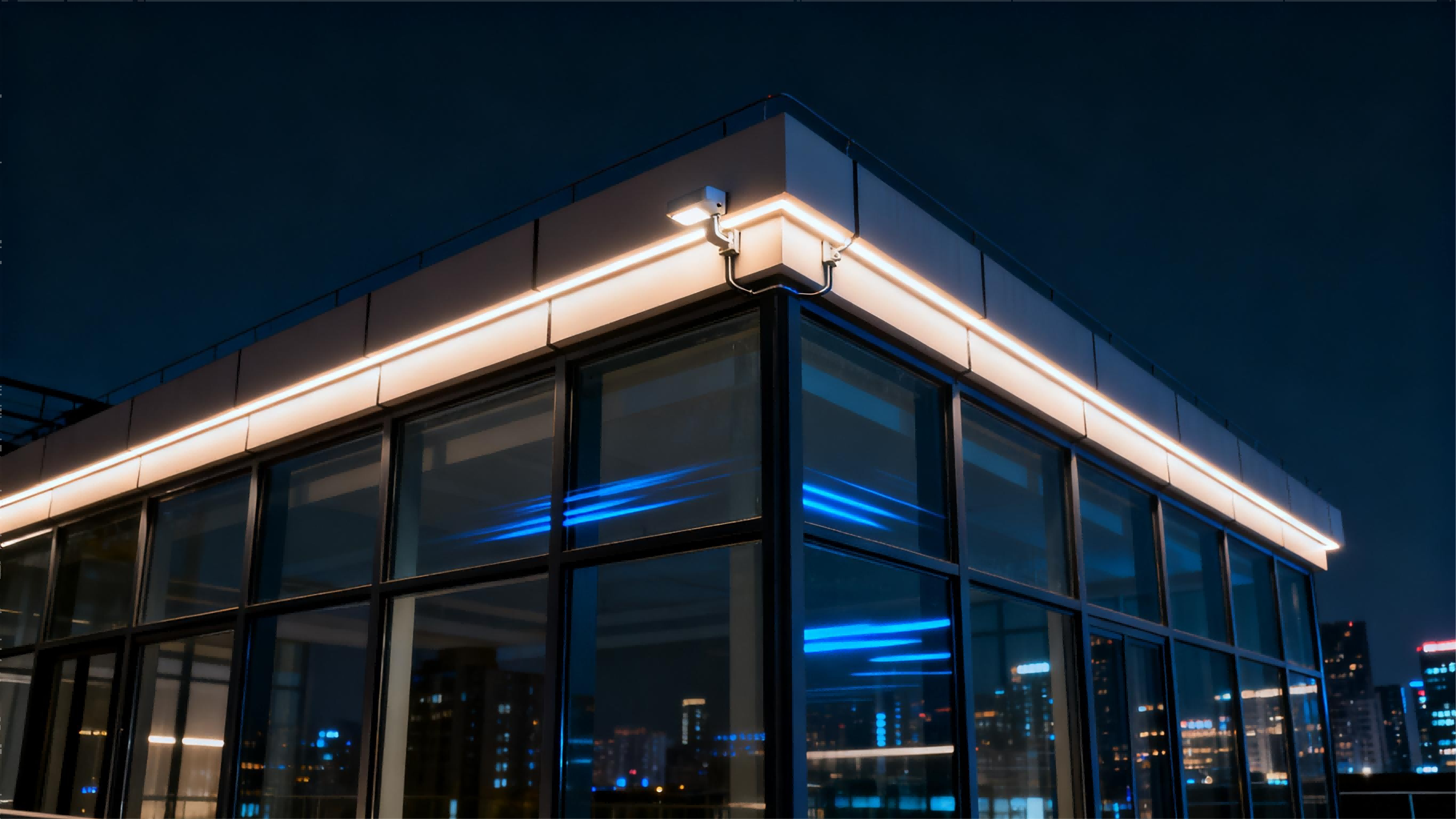

2. Use Linear Luminaires to Emphasize Geometric Lines
In modern architectural design, clean lines and continuous contours define a building's character. Linear luminaires are the ideal tool for reinforcing this geometric language, capable of precisely outlining building edges, cornices, window frames, and structural joints, transforming a complex façade into a legible graphic symbol that remains clear at night.
2.1 Achieving Seamless Continuity Over Long Distances
The primary challenge of linear lighting is achieving absolute visual coherence. When a design requires a 20-meter continuous light strip, simply splicing standard lengths will result in visible dark zones and color differences. The solution lies in early collaborative design, working closely with linear luminaire suppliers to obtain custom-length products and ensure all components come from the same production batch. Technical specifications must mandate strict color tolerance, with a ΔE less than 3 being a key indicator.
2.2 Integrating Form, Function, and Protection
The success of linear lighting lies in "invisible" integration. Selecting fixtures with an IP66 or higher rating is a basic requirement, while the installation details of the profile determine the final visual effect. It should be determined in collaboration with the architect and curtain wall consultant: whether to use a flush, recessed design to create the illusion of light emanating from the wall itself, or to choose profiles with shielding baffles to eliminate glare from specific viewing angles? A successful installation should make the fixtures themselves "disappear" into the architecture.
2.3 Dynamic Control Beyond Static Lines
Think of linear contours as a dynamic canvas for the architecture. By integrating DMX512 or DALI-2 control systems, static lines can be transformed into architectural elements that can breathe, change, and interact. This allows the building façade to present different scenes as needed: pure white light on weekdays, color waves on weekends, and brand colors during commercial celebrations. Realizing this vision requires planning the control system as a core element from the very beginning of the project.

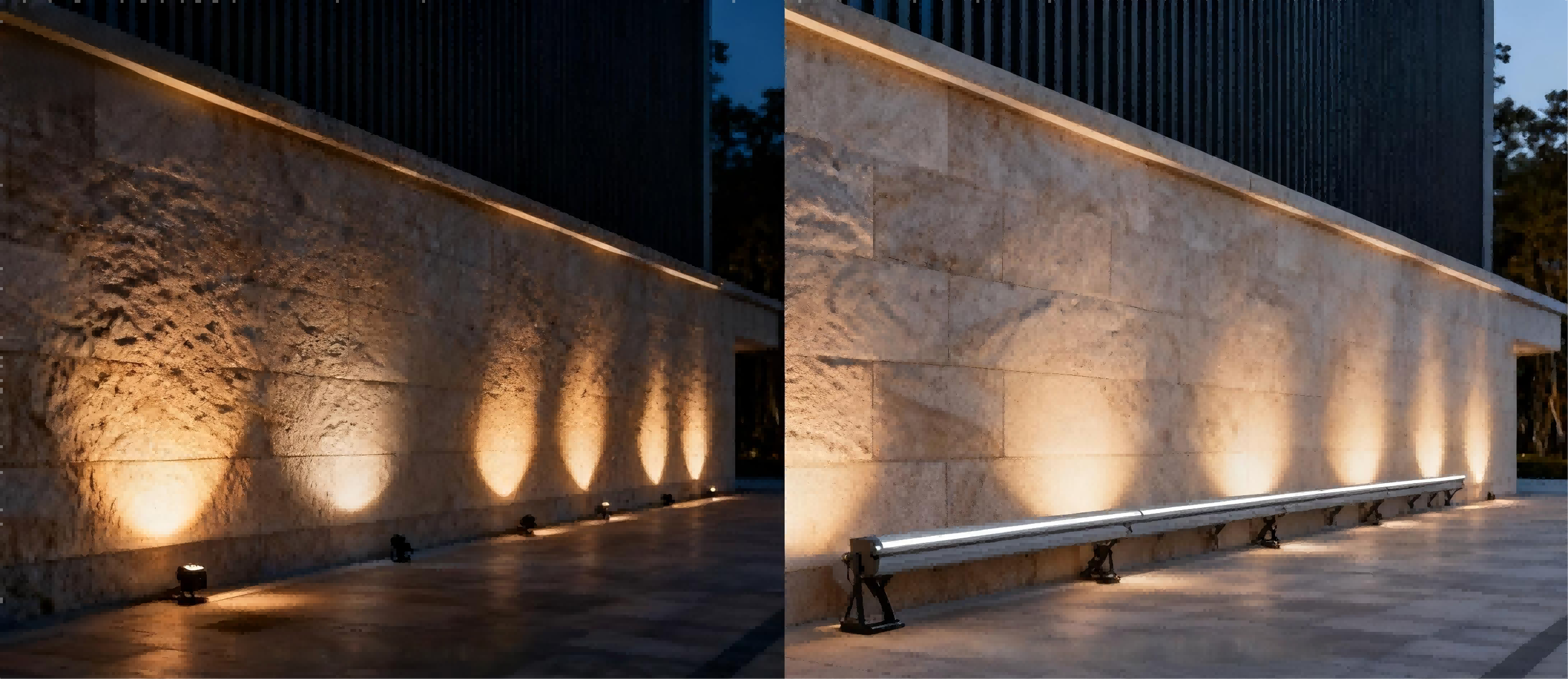

3. Select Wall Washers for Uniform Large-Area Lighting
When illuminating large wall areas, the goal of lighting shifts from highlighting details to creating a perfectly uniform curtain of light. Wall washers are designed precisely for this purpose, using precise optical systems to distribute light evenly across vast areas, avoiding the hot spots common with ordinary floodlights.
3.1 Mastering the Optical Principles of Uniform Light Distribution
The core of effective wall washing lies in understanding the luminaire's optical characteristics and layout geometry. High-quality wall washers use specially designed reflectors and lenses to form precisely controlled asymmetric light distributions. This ensures consistent light intensity from the top to the bottom of the wall surface. By maintaining a fixture spacing to mounting height ratio of approximately 1 to 1.5, overlapping light cones can be created, eliminating dark zones and achieving seamless illumination across the entire surface.
3.2 Achieving Perfect Execution Through Precise Calculation
Transforming optical theory into perfect results requires meticulous planning. Using modern lighting design software with manufacturers' IES files allows for precise simulation of illuminance levels and uniformity before installation. For critical applications, on-site mock-up testing is irreplaceable. This practical testing reveals how light actually interacts with the wall's specific texture and color—factors that significantly affect the final appearance but are difficult to accurately simulate in software.
3.3 Integrating Glare Control for Visual Comfort
The high-brightness output required for large-area lighting equally demands sophisticated glare control. Well-designed wall washers are equipped with deep-set baffles, grids, or specialized shielding to ensure comfortable viewing from all angles, which is particularly important in pedestrian areas or locations with adjacent sightlines. Selecting the appropriate beam angle—(wide beam for general washing, narrow beam for precise applications)—further enhances visual comfort while maintaining the lighting effect.

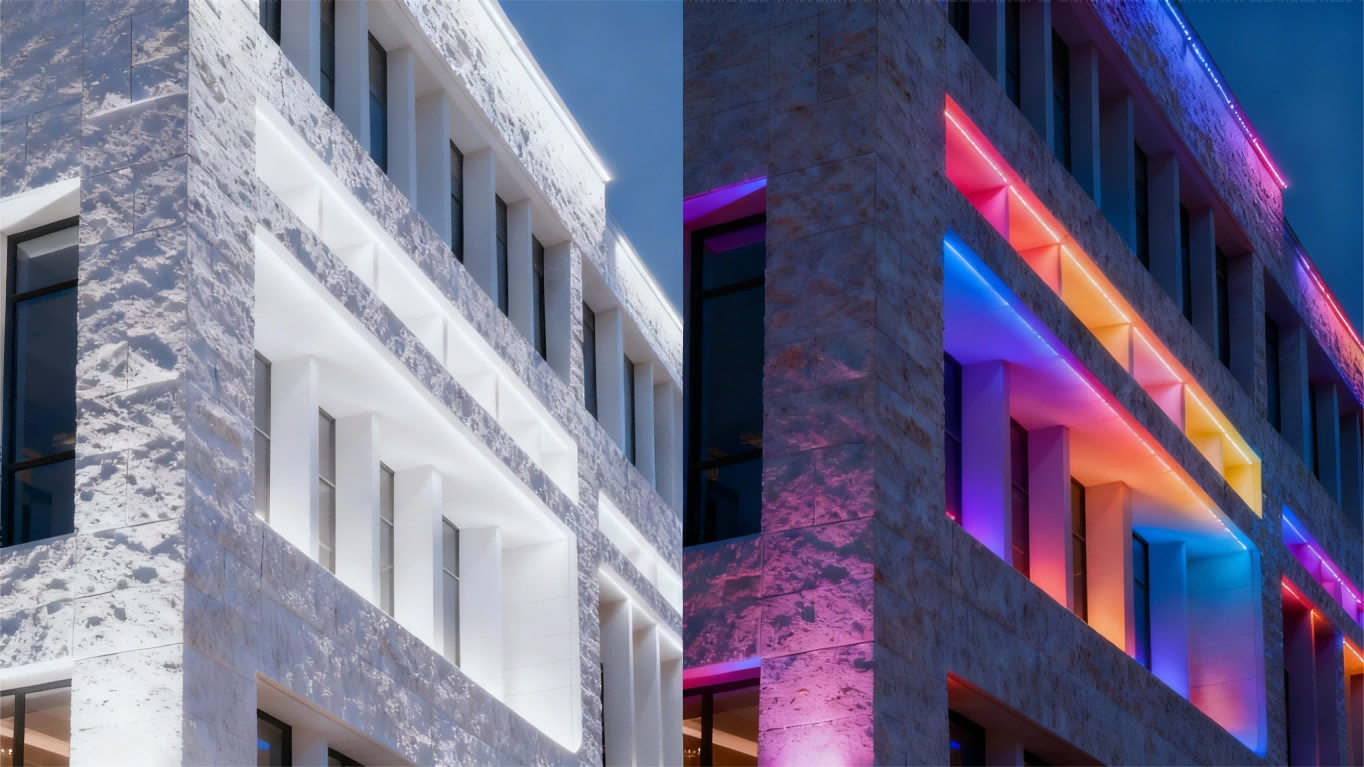

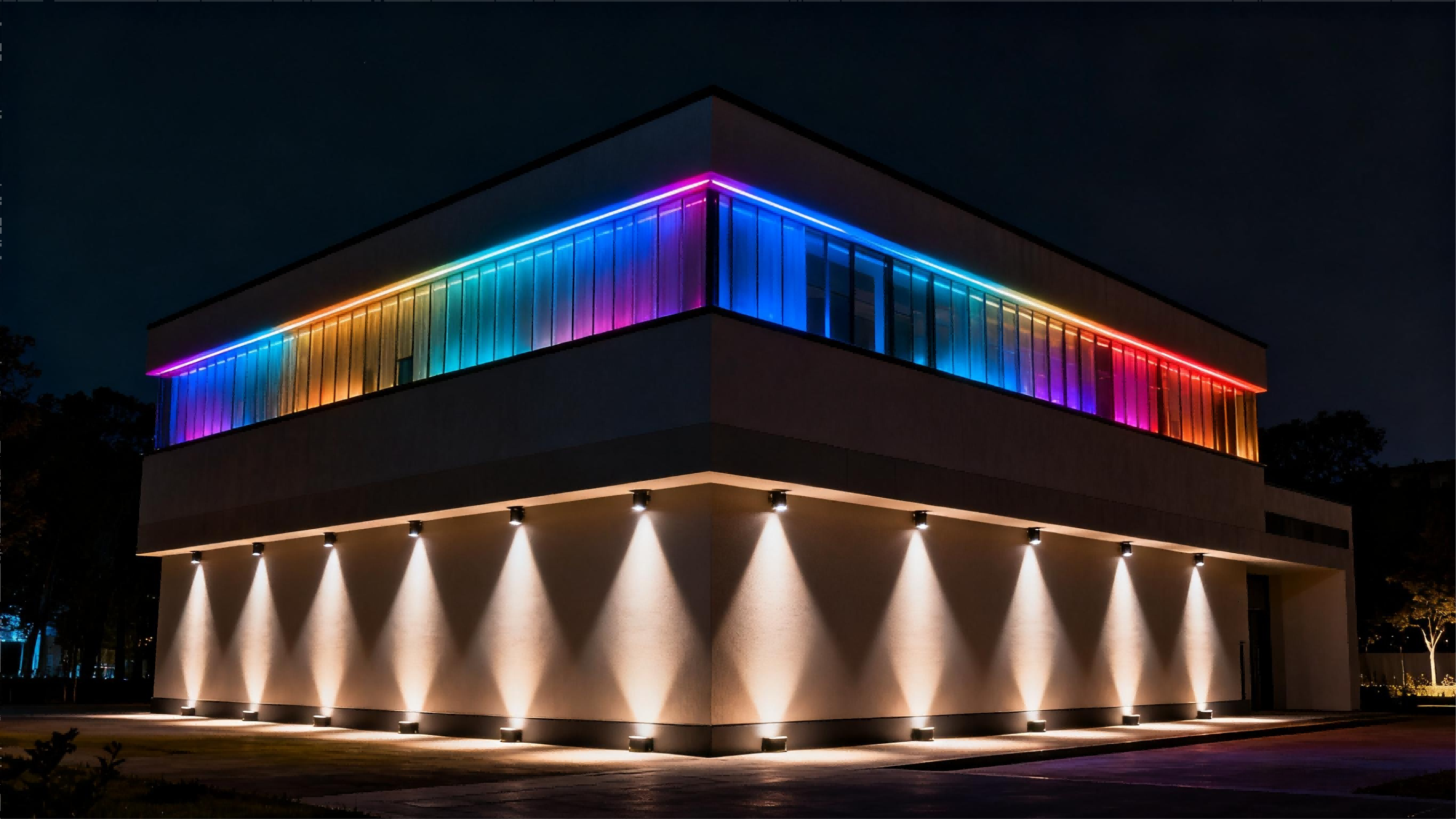

4. Combine Static White and RGBW to Balance Identity and Cost
Strategic lighting design requires balancing operational efficiency with creative flexibility. The combination of static white and RGBW luminaires offers the optimal solution, providing both an elegant daily appearance and the potential for dramatic transformation during special occasions.
4.1 Establishing the Architectural Lighting Foundation
Static white LED luminaires form the backbone of the hybrid lighting scheme, providing high-efficiency, high-quality illumination for daily operation. These luminaires provide stable and reliable lighting, defining the building's standard nighttime identity. By selecting luminaires with high color rendering index and suitable color temperature, designers ensure the building presents its best state during daily use while maximizing energy efficiency and reducing long-term operating costs.
4.2 Strategic Integration of Color Function
RGBW luminaires should be deployed strategically, not universally. The most effective approach is to position color-changing elements as a complement to, rather than a replacement for, static lighting. Consider concealing RGBW luminaires in architectural grooves, using them to highlight specific features, or placing them where color can blend naturally with the surface. This targeted application achieves stunning color transformations while controlling costs and maintaining the integrity of the architectural lighting design.
4.3 Implementing Intelligent Control Strategies
The true potential of hybrid lighting is realized through advanced control systems. Modern protocols like DMX512 or DALI-2 enable seamless transitions between different operational modes—from elegant white light on weekday evenings to vibrant color displays for special occasions. Programming should include preset scenes for different dates or seasons, as well as simple override functions for unexpected needs. This approach transforms the building façade from a static element into a dynamic medium of expression while strictly controlling energy consumption.
5. Prioritize Serviceability: Modular Fixtures Save Operating Costs
The long-term value of a lighting installation depends both on initial performance and maintenance efficiency. Modular fixture design represents the most significant advancement in reducing lifecycle costs and ensuring decades of reliable service.
5.1 Designing for Rapid Component Replacement
Truly service-friendly fixtures feature tool-less access and plug-and-play component systems. Key components such as LED drivers, light engines, and connectors should be easily accessible and replaceable without specialized tools or technical expertise. This design philosophy reduces maintenance time from hours to minutes, minimizes system downtime, (and allows facility personnel to perform routine replacements without relying on external technical support.)
5.2 Standardizing Connections and Interfaces
Consistent, clearly labeled connection systems throughout the installation prevent errors during maintenance and ensure project compatibility. Quick-connect cables, color-coded terminals, and unified mounting mechanisms create an intuitive maintenance environment that remains effective even as personnel change over time. (This standardization is particularly valuable for large installations, as consistency across hundreds of fixtures directly translates into operational efficiency.)
5.3 Planning for Long-Term Support
Serviceability extends beyond physical design to include long-term parts availability. Specifications should mandate minimum warranty periods and formal spare parts commitments from manufacturers. For major projects, requiring local stocking arrangements or guaranteed production batches for critical components ensures the lighting system remains maintainable throughout its expected lifespan, (protecting the investment from premature obsolescence.)
6. Control Glare with Precision Optics and Careful Aiming
Visual comfort is the foundation of successful architectural lighting. Uncontrolled glare not only causes discomfort but can completely undermine the intended visual experience, making carefully designed lighting appear amateurish and intrusive.
6.1 Selecting the Appropriate Optical System
The first line of defense against glare is selecting luminaires with precision optical systems. Different applications require different solutions: narrow beam angles for precise accent lighting, wide beam angles for general washing, and asymmetric light distributions for specific surface treatments. (Quality manufacturers offer a wide range of optical options and detailed photometric data, enabling designers to precisely match the luminaire's light distribution to architectural needs while maintaining comfortable viewing conditions.)
6.2 Implementing Strategic Aiming and Positioning
Even the best optical systems require careful implementation. Final fixture aiming should be conducted during nighttime commissioning, when visual effects can be properly assessed. Considerations include viewing angles from public spaces, potential reflections in adjacent buildings, and the specific relationship between light sources and architectural surfaces. (This hands-on adjustment process often reveals subtle issues that are not apparent in drawings or simulations.)
6.3 Adhering to Dark Sky and Environmental Principles
Responsible lighting design looks beyond the immediate project to consider broader environmental impacts. Specifying minimal upward light output, implementing appropriate shielding, and selecting suitable color temperatures all help reduce light pollution. These practices not only demonstrate environmental responsibility but also often improve the quality of the lighting design by focusing illumination where it is truly needed.
7. Design for the Climate: Corrosion and Ingress Protection are Crucial
Outdoor lighting fixtures must withstand years of environmental challenges while maintaining performance and appearance. Matching fixture specifications to specific climatic conditions is essential for long-term reliability and aesthetic preservation.
7.1 Understanding Ingress Protection Rating Requirements
IP ratings provide a standardized system for evaluating environmental resistance. While IP65 serves as a general baseline for outdoor luminaires, more demanding environments require higher specifications. Coastal areas need IP66 or higher to resist salt spray, while locations subject to high-pressure washing or heavy rainfall benefit from IP68's continuous immersion protection. (Understanding these distinctions ensures appropriate specifications for each project's unique conditions.)
7.2 Selecting Materials for Long-Term Durability
Beyond IP ratings, material selection determines how fixtures withstand environmental stresses over time. Marine-grade aluminum with high-quality powder coating provides excellent corrosion resistance for most applications, while stainless steel hardware prevents unsightly rust stains. In particularly harsh environments—coastal, industrial, or high-pollution areas—upgrading to marine-grade stainless steel or copper alloys offers maximum protection against degradation.
7.3 Considering Thermal and UV Challenges
The operating environment presents challenges beyond moisture and corrosion. Continuous thermal cycling tests material integrity and connection reliability, while UV exposure degrades finishes and plastics. High-quality fixtures address these factors through robust construction, UV-resistant materials, and designs that accommodate thermal expansion. (These considerations are particularly important in climates with extreme temperature variations or intense sunlight.)
8. Make Control Central to the Lighting Concept
Modern lighting control systems transform static illumination into dynamic architectural expression. By integrating control strategy into the initial design phase, lighting becomes a responsive element that adapts to different needs and opportunities.
8.1 Selecting the Appropriate Control Protocol
The choice of control protocol determines the system's capabilities and flexibility. DALI-2 provides stable, addressable control for energy management and scene setting in white light applications. DMX512 offers the precision and speed required for dynamic color changing and complex sequences. For simpler applications, wireless protocols or basic timeclock systems may suffice. (The selection should align with both immediate needs and potential future requirements.)
8.2 Implementing Zoning and Scheduling Strategies
Effective control involves more than just technology—it requires thorough operational planning. Dividing the façade into logical control zones allows different areas to operate independently based on time, occupancy, or specific events. Scheduling enables automatic transitions between operational modes—(from evening emphasis lighting to midnight safety lighting)—ensuring the system responds appropriately to changing conditions without manual intervention.
8.3 Planning for Integration and Expansion
Control system design should consider future integration. Consider potential connections to building management systems, security systems, or interactive elements. Providing adequate infrastructure for future expansion—(additional control lines, spare capacity in controllers, accessible interface points)—ensures the lighting system can evolve with the building's needs, protecting the long-term value of the installation.
9. Use Photometric Data and Physical Mock-ups to De-risk Design Decisions
Bridging the gap between design intent and built reality requires both scientific analysis and physical verification. The combination of digital simulation and real-world testing provides the most reliable path to predictable, successful outcomes.
9.1 Leveraging Photometric Analysis
Modern lighting design software can simulate illuminance levels, uniformity, and visual effects in detail before any fixtures are installed. By importing actual manufacturer IES files, designers can validate fixture selection, optimize layouts, and identify potential issues like hot spots or dark areas. This data-driven approach replaces guesswork with quantitative analysis, (providing confidence in the technical soundness of the proposed design.)
9.2 The Critical Role of Physical Mock-ups
While software provides valuable data, physical mock-ups offer irreplaceable visual verification. Installing a representative section of the proposed lighting allows stakeholders to assess the actual visual effects, including how light interacts with specific materials and finishes. This process often reveals subtleties that simulations cannot capture, (such as exact color appearance, glare characteristics, and the overall visual impression.)
9.3 Establishing Performance Benchmarks
The mock-up process serves not only for evaluation but also as a benchmark for quality control throughout the installation. Once approved, the mock-up becomes the standard against which all subsequent work is measured. This is particularly valuable for ensuring consistency across multiple contractors or phased installations, providing a clear visual reference that complements technical specifications.
10. Tell the ROI Story: Energy, Maintenance, and Placemaking
Translating lighting design benefits into compelling business cases requires speaking the language of value. A well-constructed ROI narrative addresses both quantitative financial metrics and qualitative value creation.
10.1 Quantifying Energy and Maintenance Savings
The most straightforward component of ROI is calculating operational savings. Modern LED systems typically reduce energy consumption by 50-70% compared to conventional lighting, while their extended lifespan drastically cuts maintenance costs. Presenting a clear payback calculation—(comparing existing energy and maintenance costs with the projected costs of the new system)—provides a solid foundation for financial justification.
10.2 Articulating Placemaking and Brand Value
Beyond direct savings, quality lighting creates significant intangible value. A well-lit building enhances corporate image, attracts attention, and can increase property value. For commercial properties, attractive lighting can extend business hours and increase foot traffic. Quantifying these benefits—through comparable property valuations, estimated increases in visitor numbers, or brand enhancement metrics—completes the value proposition.
10.3 Framing the Full Lifecycle Value
The most persuasive ROI presentations focus on the total cost of ownership rather than just the initial investment. By projecting costs over a 10-20 year period, the higher initial cost of quality fixtures is contrasted with long-term savings in energy, maintenance, and replacement. This perspective helps decision-makers understand that specifying superior products represents better value, not just higher cost.
Conclusion
Outstanding architectural façade lighting is the perfect fusion of artistic vision and engineering technology. By layering light, selecting fixtures precisely, focusing on maintainability, and rigorously analyzing and validating design effects, we create lighting schemes that are not only visually stunning but also operationally intelligent. Redefining lighting as a strategic investment—rather than a mere cost—enables us to present a highly persuasive value proposition, ensuring buildings present their best image at night while optimizing full lifecycle costs.
About LNJAMI
LNJAMI — founded in Shenzhen in 2008 — is a specialist provider of outdoor architectural lighting, offering a full range of products including wall washers, linear luminaires, floodlights, light guide panels, point light sources, mesh screens and in-ground fixtures. We pair in-house product engineering with photometric-led specification support and end-to-end services — from concept design and rendered mock-ups to control integration and on-site installation guidance — to deliver durable, energy-efficient lighting solutions for clients around the world. Our fixtures are designed for long-term performance and easy serviceability, built to meet demanding IP and finish standards for coastal and urban environments. For technical consultation, photometric mock-ups or project quotes, contact LNJAMI at www.ljmlamp.com.
FAQ — Outdoor Lighting Fixtures: 5 Quick Answers
Q1: Wall washer or floodlight — which should I use?
A: Use wall washers for smooth, uniform façade coverage; use floodlights for targeted accent or wide-area illumination where tighter aiming isn’t needed.
Q2: How do I size spacing for wall washers and linear lights?
A: Start with a spacing: height ratio of ~1:1 to 1:1.5, then validate and fine-tune using manufacturer IES files in lighting software.
Q3: RGB/RGBW or static white — which is best?
A: Static white is the energy-efficient daily backbone; add RGB/RGBW selectively for feature highlights, events or branding.
Q4: DMX512 or DALI-2 — which control protocol should I choose?
A: Choose DALI-2 for addressable white-light energy management and simple scene control; choose DMX512 for fast, pixel-level color effects and complex animations.
Q5: What about durability, glare control, and commissioning?
A: Specify appropriate IP/finish for the climate (IP66+ for coastal), use precision optics and shielding to reduce glare, and perform final aiming/commissioning at night with stakeholders to confirm scenes and limits.
