Brightness vs Illuminance: A Guide for Architectural Lighting Design

Brightness vs Illuminance: A Guide for Architectural Lighting Design

Why does the gleaming facade of a landmark building command attention, while a perfectly lit pedestrian path feels comfortable and safe? The secret lies in understanding two fundamental lighting concepts: brightness and illuminance.

In architectural and outdoor lighting design, these terms are not interchangeable. Confusing them can lead to projects that are either visually underwhelming, glaringly uncomfortable, or energetically inefficient. Mastering their difference is key to creating spaces that are beautiful, functional, and sustainable.

So, what is brightness, and what is illuminance in the context of the built environment? Let's illuminate the facts.

1. What Is Brightness？A Human Visual Perception

Brightness is a subjective visual experience produced by the interaction between light, surface properties, and the human visual system. Technically we most often refer to this percept as luminance (measured in cd/m²), which describes how much light a surface emits or reflects toward the eye in a given direction. However, perceived brightness depends on much more than that single value. Factors such as surface reflectance (albedo), texture, specularity (gloss), color, and local contrast all change how intense a surface looks. A pale, slightly glossy limestone wall will appear markedly brighter than the same wall finished in dark, matte paint even under identical lighting. Designers exploit these material differences—choosing finishes, polishing, or color—to sculpt the visual hierarchy of a scene without increasing power consumption.

Human vision and context also play a major role in brightness perception. Visual adaptation (how eyes adjust to overall scene luminance), simultaneous contrast with surrounding surfaces, viewing angle, distance, and the observer’s task or expectations influence the impression of brightness. For example, a low, warm-lit plaza may feel very bright and welcoming after midnight because the eyes are adapted to darkness, while the same absolute luminance in a well-lit urban street at dusk may register as subdued. Furthermore, poorly controlled luminance from fixtures (high-intensity points in the field of view) produces discomfort and disability glare, reducing the usable visual information even when measured luminance is high. Good design therefore manages both the magnitude and distribution of luminance to create clear, comfortable, and legible night scenes.

2. What Is Illuminance？A Measurable Lighting Value

Illuminance is an objective metric describing how much luminous flux falls on a surface per unit area, and it is measured in lux (lx). It is the primary technical parameter lighting designers use to size fixtures, calculate spacing, and demonstrate compliance with safety or functional standards. Illuminance is measured on the relevant task plane—horizontal for roads and plazas, vertical for building façades and faces—and is governed by geometric and photometric laws: output of the luminaire, beam distribution, mounting height, and distance all determine the lux level at any point. Because illuminance follows the inverse-square law (and is affected by cosine of incidence), designers must model fixtures in software or verify with a lux meter in the field to ensure uniformity and avoid hotspots or dark patches.

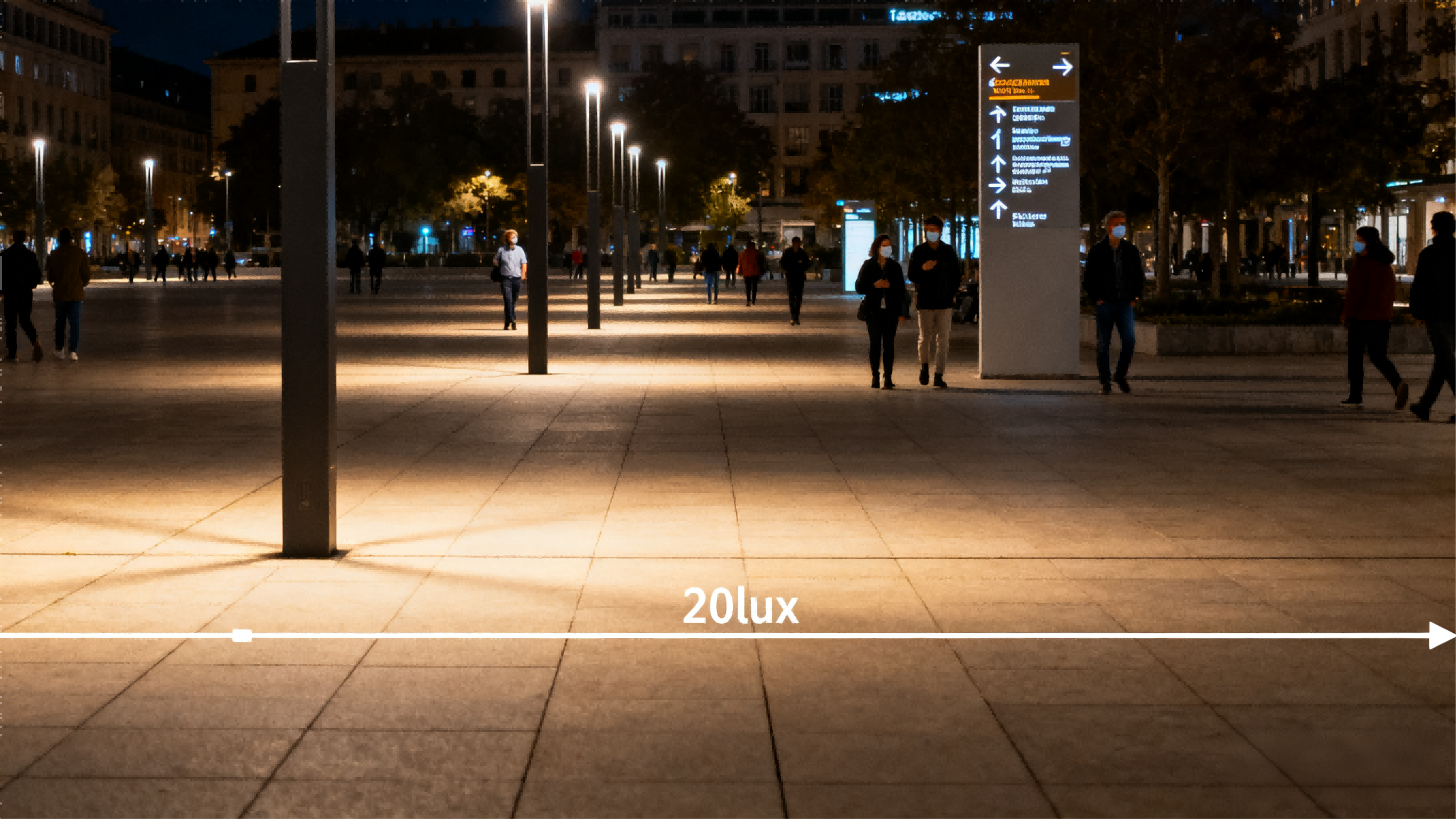

Practically, illuminance is used alongside other metrics—uniformity ratios, vertical illuminance, and correlated color temperature—to meet both safety and perceptual goals. Designers often target specific lux ranges depending on the use case (for example, low-intensity ambient levels for parks, higher task-level lux for stairs or taxi stands), and they balance average illuminance with uniformity to reduce visual fatigue and improve object detection. Measurement technique matters: point-by-point lux meter readings, grid surveys, and photometric simulations (DIALux, AGi32) are complementary methods that confirm design intent. Importantly, effective lighting design does not blindly increase lux; it optimizes beam control, mounting geometry, and surface interaction so that required illuminance is delivered efficiently and contributes positively to perceived brightness and safety.

3. Brightness vs Illuminance: Understanding the Key Differences

Brightness is subjective; illuminance is objective. Brightness varies depending on the viewer’s visual system, surface characteristics, and surrounding environment, whereas illuminance is determined by the light source, output, and physical distance. Although the two concepts influence each other, they should never be treated as the same. A façade may have moderate illuminance but still appear impressively bright because the material reflects light efficiently and the lighting is evenly distributed. Conversely, a surface with high illuminance may not look visually pleasant if the light is harsh, uneven, or poorly controlled. Recognizing this difference helps designers achieve better results with less energy and create lighting environments that feel balanced and comfortable.

4. How Lighting Designers Use These Concepts in Real Projects

In real-world architectural lighting, designers rely on illuminance to build the technical foundation of a project while using brightness to shape the visual experience. They test various lux levels and visual effects to ensure both compliance and aesthetics. Narrower beam angles may be used to enhance perceived brightness at long distances, while uniform wall-washing techniques help remove glare and improve comfort. Material analysis is also crucial. Light-colored stone, glass, brushed metal, and concrete all respond differently to the same amount of light, resulting in significant variations in perceived brightness. By balancing illuminance with brightness, designers can create façade lighting that meets professional standards and delivers strong visual identity at night.

5. Why This Distinction is Critical in Outdoor Design

Facade Lighting: A designer might use a high illuminance on a dark, matte brick wall to make it visually prominent. Conversely, a low illuminance might be sufficient for a light-colored, highly reflective marble facade to achieve the same perceived brightness, saving significant energy.

Roadway and Public Safety: Standards specify horizontal illuminance on the road surface. However, driver safety also depends on the brightness of vertical objects (like pedestrians and signs). Modern lighting design now emphasizes vertical illuminance and luminance contrast to improve object detection.

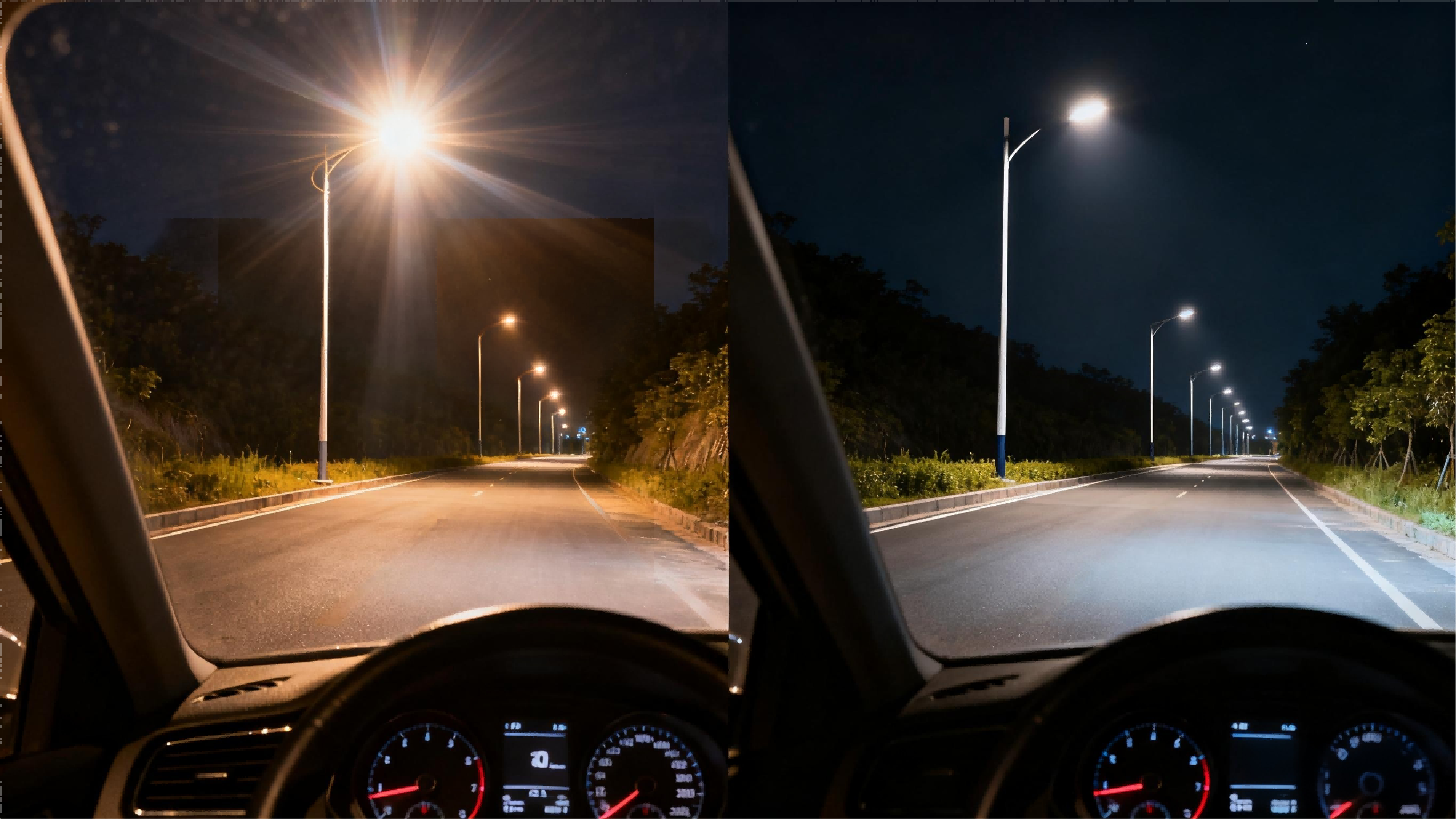

Comfort and Glare Control: A streetlamp might provide the recommended horizontal illuminance, but if the fixture itself is an unshielded "glare bomb," its excessive brightness will cause discomfort and reduce visibility for pedestrians and drivers. Good design prioritizes controlling brightness at the source.

Sustainability and Light Pollution: By understanding that perceived brightness is a function of both illuminance and surface reflectance, designers can use lower illuminance levels on highly reflective surfaces. This reduces energy consumption and minimizes "uplight," which contributes to skyglow.

6. Conclusion: Designing with Both Light and Vision

Successful outdoor lighting design is never just about raising lux numbers or making fixtures as bright as possible — it is about aligning measurable illuminance with perceived brightness to serve human needs, architectural intent, and environmental goals. Illuminance (lux) gives you the technical foundation: the numbers you calculate, the standards you meet, and the safety metrics you verify. Brightness (luminance) is the visual result: the hierarchy, legibility, comfort, and emotional impact that people actually experience. Treating them together — not as alternatives but as complementary tools — lets you create façades that attract and plazas that welcome, while minimizing glare, energy use, and light pollution.

In practice, achieving this balance requires more than theoretical understanding — it requires proven products, precise optical control, and real project experience. That is where LNJAMI, as a leading outdoor architectural lighting manufacturer since 2008, adds value. Our wall washers, linear lights, floodlights, and facade solutions are engineered to deliver both the required illuminance and the intended visual brightness with exceptional consistency. Through optimized optics, high-quality LEDs, and durable outdoor-rated construction, we help designers shape luminous textures on buildings, enhance visual comfort in public spaces, and reduce excessive uplight. Combined with our design support, simulation services, and installation guidance, we ensure that every project not only meets safety and performance standards but also achieves a distinctive nighttime identity — beautifully, efficiently, and sustainably.
